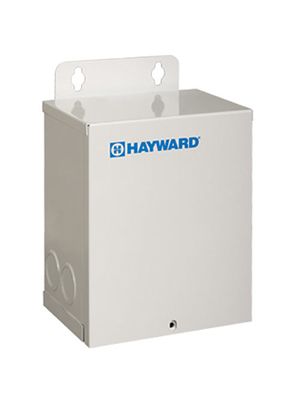

Hayward LTBCY11300 Wall Mount Transformer PlugIn with Switch 300W

The Hayward® 300 Watt Pool Transformer LTBCY11300 is a low voltage transformer for use with pool and spa lights and submersible fixtures. It can be used to power up to four Hayward Universal ColorLogic® and CrystaLogicTM LED lights and offers a dedicated mounting location for the Coupler LKBUN1000 (necessary when using a powerline networking connection from a Hayward Pro Logic® controller). The LTBCY11300 has 3 output options, 12v, 13v and 14v.

Specifications

Enclosure Size: 7 9/16" (19.2 cm) high x 5 5/8" (14.3 cm) wide x 4 5/8" (11.8 cm) deep. Mounting brackets top and bottom.

Enclosure Type: (A) 0.054" corrosion resistant steel with electrostatically applied white coating.

Knockouts: Total of eight 1/2"-3/4" combination. (4) bottom, (2) right side, (2) left side

Electrical: Input: 120v, 60Hz, 3A max. Output: 12, 13 or 14 Vac @ 300W max For field connections, use wires suitable for at least 90ºC (194ºF)

Circuit Protection: A "Split Bobbin" between the primary and secondary windings assures safe operation and the built-in circuit protection will disconnect power to the transformer in case of defect or overload. This transformer is suitable for direct connection to underwater Pool and Spa lights when used with adapter, clamp and duct seal.
